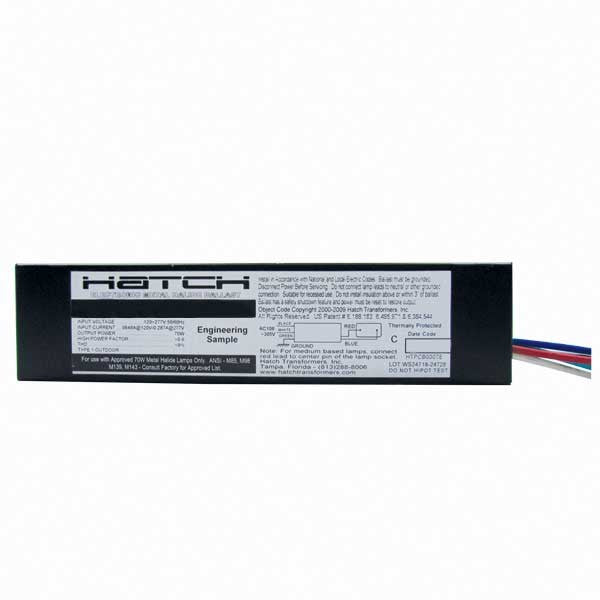

Have you ever wanted a reliable power source for your metal hailde lighting, that easy to install and comes with a 5 year warranty? Our Hatch electronic ballast is a slinder shaped device that supplies MH fixtures with the right amount of wattage and voltage at a low energetic rate. The MC70-1-F-UNNS-HB slim model comes with opposite side leads out and mounting feet.
This lightweight, compact design and microprocessor based electronic ballast makes it best choice for your construction. Its low sound and outdoor operation UL listing makes it useable in parks, gardens and even stadiums.
Features
- Lamp type: Metal Halide
- Ballast type: Electronic
- Wattage: 70W
- Dedicated 120vAC input
- Frequency: 50/60 HZ
- Operates a single MC156 (ANSI) bulb
- Power factor of 95% - saves on energy costs!
- THD is less than 10% - near silent operation
- Micro Processor operated controller Longer Life Span of Lamp
- Min/Max temp: -22°F to 176°F
- 5 year warranty
Application
The ballast is designed to be used with HID lights of 70W rating at a very high operating frequency which gives a flicker free operation. It comes with bottom feed studs for easy installation. It is provided with input and output leads of 18 AWG at 600 V. Microprocessor based electronic control makes it intelligent and superior to other products available in market and adds features of auto restart after hot lamp and gives many other electrical protections like open circuit and short circuit. This ballast is best for use for industrial areas as well as outdoor locations.
External Specifications
The ballast is compact in design and that is why it is named “Slim” by hatch. Light in weight and sound rating of A makes it very useful product.
Electrical Specifications
Operated at 120V and 277 AC voltage at 60 and 50 Hz frequency making it a universal product and its voltage regulation of 5% makes it more versatile. The ballast provides protection from transients in voltages as well as short circuit with ground making it safe for personnel working on. It has ignition failure protection as the ballast shuts down as various electronically timed startup attempts and this shut down is over after a manual restart is done. It has power factor greater than 0.95 making it highly efficient.
Dimensions:
- Width: 1.74”
- Height: 1.47”
- Depth: 7.2”
- Weight: 0.95 lbs
Compliance:
- U.L. listed type 1 outdoor
- RoHS Compliant
