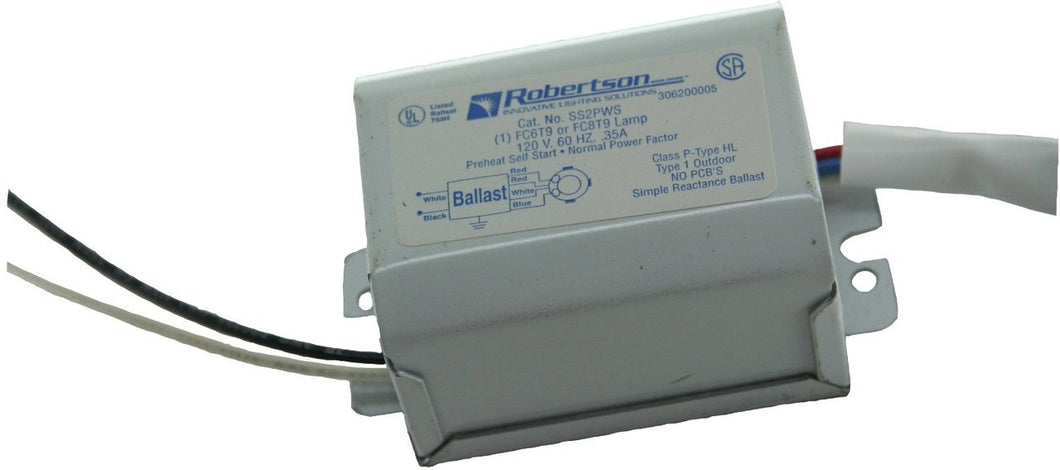

Robertson SS2P /A Circline 22W Ballast - With Connector

Robertson SS2P /A Circline 22W Ballast - With Connector

Rs. 31.45
Rs. 31.45

The Robertson SS2PWS /A is a Magnetic Ballast that operates (1) F16T9 lamp 120 at 120V This ballast is great for areas that require normal lighting! Preheat Self start ballast is typically used in offices, board rooms, and retail. Also operates FC8T9, and Fluorescent lamps.






Specifications

  • Type: Electronic Circular Fluorescent
  • Start Method: Preheat Rapid Start
  • Lamps: one F16T9
  • Input Voltage: 120V
  • Lamp Wiring: Series

Features

  • Crest Factor: 1.7
  • Maximum Temperature:  90°
  • Sound Rated Class A
  • 50% power factor
  • 2 years warranty


Dimensions

  • Length: 3"
  • Height: 1.44"
  • Width: 1.88"
  • Mounting: 2.75"

Compliance

  • UL & cUL Listed
  • Class P, Type 1 Outdoor
  • RoHS
  • CSA
  • ANSI C82.1
